282
SWITCHES
SLIDE SWITCHES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
SLIDE SWITCHES
DESIGN FEATURES
Switchcraft slide switches are completely field tested and
proven in electrical/electronic equipment applications. They are
among the highest-quality, lowest-cost slide switches available
to “cost-to-quality ratio” conscious engineers.
Precision slide switches are designed and constructed to meet
or exceed industry standards for reliability, electrical capacity
and life characteristics.
Switchcraft’s slide action switches are ideal for use in critical
military and industrial applications such as: instrumentation,
test and ground support equipment, computers, control
devices. Their attractive styling will enhance the appearance of
modern home entertainment equipment.
SPECIAL ORDER SWITCHES FOR
CSA APPLICATIONS
The following series of switches (solder lug type) must be
assembled with a fishpaper or phenolic solder guard to be
CSA certified and stamped. Available on special order only.
Series 46000R, 47000R, 46313R, 49000L, 50000L, Solder
guards are not required on these switch series with PC
terminals. However, they can only be supplied with CSA stamp
on special order. Solder guards are not required on
UL only versions. Contact Switchcraft for details.
SWITCH SERIES IDENTIFICATION
Number of
Series
Name
Positions
UL AND CSA SWITCHES
All slide switches in this catalog with part number suffix “E”
are stamped with both UL and CSA marks. Other standard
switches are UL recognized (except as noted) and are
stamped with the mark.
46000
47000
49000
50000
56200, C56200
56300, C56300
C63000
EPS1, EPS2
EPS3, EPS4
General Purpose Slide Switches
Tandem Slide Switches
General Purpose Slide Switches
General Purpose Slide Switches
“Tini-Slide” Slide Switches
“Tini-Slide” Slide Switches
Miniature Slide Switches
European Line Voltage
Selector Switches
2, 3
2; 2 gang
3
2
2
3
4
2

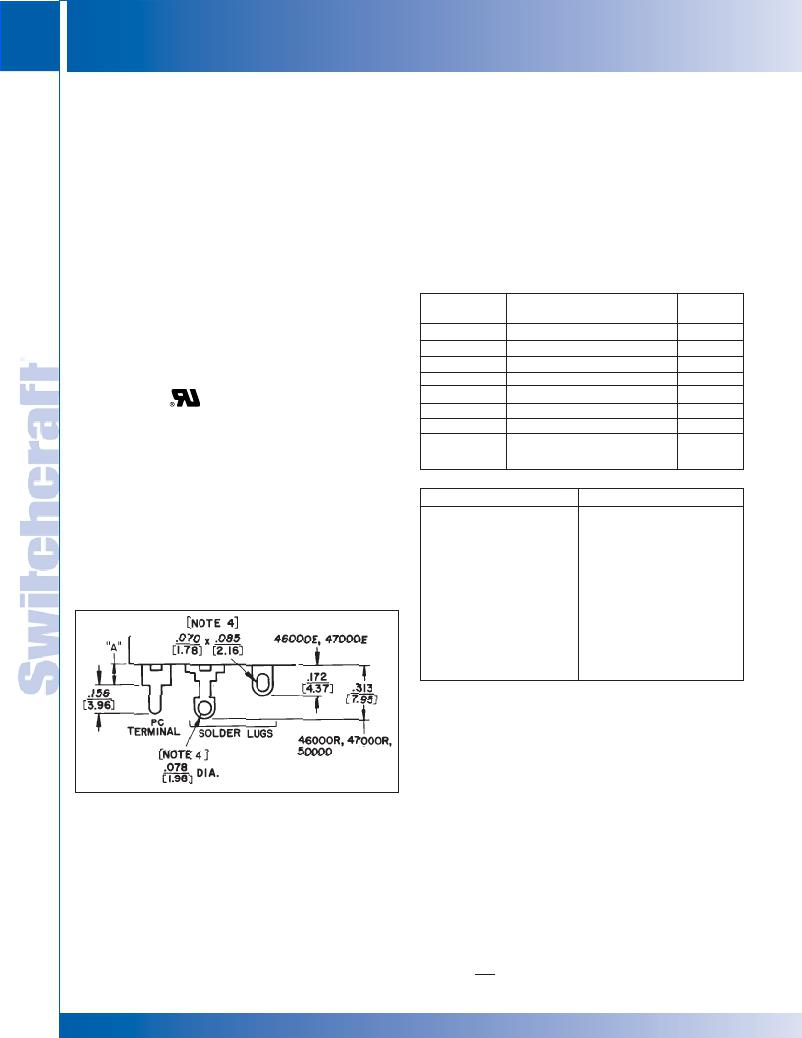

TERMINALS
Silver-plated terminals are standard; gold-plated terminals are
available on special order. Printed circuit terminals in varying
lengths from (“A” dimension) .078" (1.98 mm) to 1.25" (31.75
mm) are available on special order. Reference “A” on all switch
drawings indicates length of PC ter minals. See
illustration and notes below for selection of terminals.
Series
46000E
46000R
47000E
47000R
49000
50000
56000, C56000
62000, C62000
C63000
EPS1, EPS2
Description
Note 1
Notes 1, 3
Note 1
Notes 1, 3
Note 1
Notes 1, 3
See page 288
See page 290
See page 290
See page 291
EPS3, EPS4
NOTES:
1. PC terminal “A” dimension is:
Standard - .078" (1.98)
Special - .109" (2.77), .141" (3.58), .160" (4.06), .180" (4.57), .203" (5.16),
.234" (5.94), .266" (6.76), .313" (7.95), .391" (9.93), .400" (10.16),
.438" (11.12), .484" (12.29), .609" (15.47), .688" (17.48), .719" (18.26),
.813" (20.65), .969" (24.61), 1.25" (31.75)
2. .078" (1.98) “A” dimension is not recommended for momentary switches
unless clearance hole for return spring is provided in PC board.
3. Accepts up to #14 AWG wire.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
